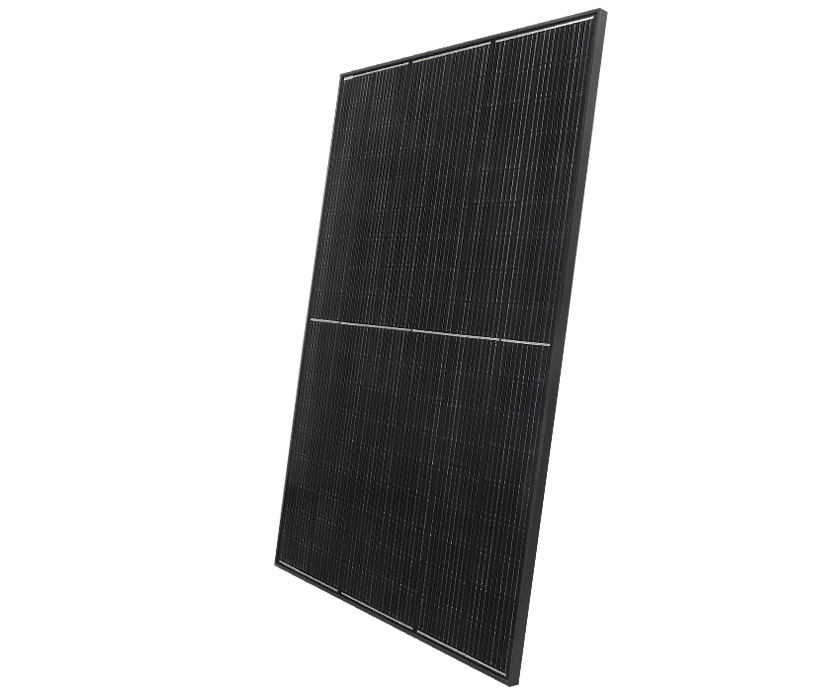

Solarmodul 410 Watt Monokristallin silber/schwarz
Art.-ID 16489
- Leistung: 410 Watt
- Wirkungsgrad: 20.97%
- Größe: 1722 x 1134 x 30 mm
- Gewicht: 21,5 kg
- 25 Jahre Leistungsgarantie + 20 Jahre Materialgarantie
- TÜV zertifiziert (Zertifikatsnummer: 44 780 23 406749 - 126)
Passende Produkte
Comprehensive Certificates
- TÜV NORD
- ISO9001:2015
- ISO14001:2015
- ISO45001:2018
- IEC61215/IEC61730
Technische Daten
Merkmale
Gallium-doped Technology
Half Cut Cell Technology
Less Hot Spot Shading Effects
Anti-PID
Low LID
Performance
Enduring High
Reliability & Performance
Linear performance Warranty
Data-Sheet
| Module | PM-410W(108) | ||||
|---|---|---|---|---|---|
| Efficiency (%) | 20.97 | ||||
| Tolerance (W) | 0 ∼ +5 | ||||
| Standard Test | STCNOCT | ||||
| Maximum Power (Pmax ⁄ W) | 410310 | ||||
| Open Circuit Voltage Voc(V) | 37.4535.23 | ||||
| Short Circuit Current Isc(A) | 14.0211.16 | ||||
| Maximum Power Voltage Vmp(V) | 31.6129.72 | ||||
| Maximum Power Current Imp(A) | 13.1310.43 | ||||
| Cells (mm) | MBB-182x91mm Mono-Perc | ||||
| Cells Qty (Pcs) | 108(6x18) | ||||
| Max System Voltage (V) | DC1500 | ||||
| Open Circuit Voltage Temp (% ⁄ °C) | -0.282 | ||||
| Circuit Current Temp (% ⁄ °C) | 0.05 | ||||
| Peak Power Temp (% ⁄ °C) | -0.348 | ||||
| Operate Temp (°C) | -40 to 85 | ||||
| Nominal Operating Temp (°C) | 45±2 | ||||
| Max Series Fuse Rating (A) | 25 | ||||
| Frontal Static Load (Pa) | 5400 | ||||
| Back Static Load (Pa) | 2400 | ||||
| Standard Test Conditions[STC]: irradiance 1,000 W/m2; AM 1,5; module temperature 25°C. Measuring uncertainty of power is within ± 3% Tolerance of Pmpp: 0-+3%. Certified in accordance with IEC61215, IEC61730-1/2. | |||||
| Raw material | |||||
| Frame | Alloy Aluminium | Glass(mm) | 3.2 | ||
| Cell | 6x18pcs 182x91mm Mono solar cells perc | Junction box | IP68, TÜV & UL | ||
| Diode Qty | 3 | Connector | 4mm², MC4 or EVO 2 | ||
| Cable(mm) | 300 | ||||
| Package | |||||
| Module size(mm) | 1722x1134x30 | Weight(kg) | 21.5 | ||
| Loading | 936 PCS/40HQ | Package | 36PCS/PLT | ||
