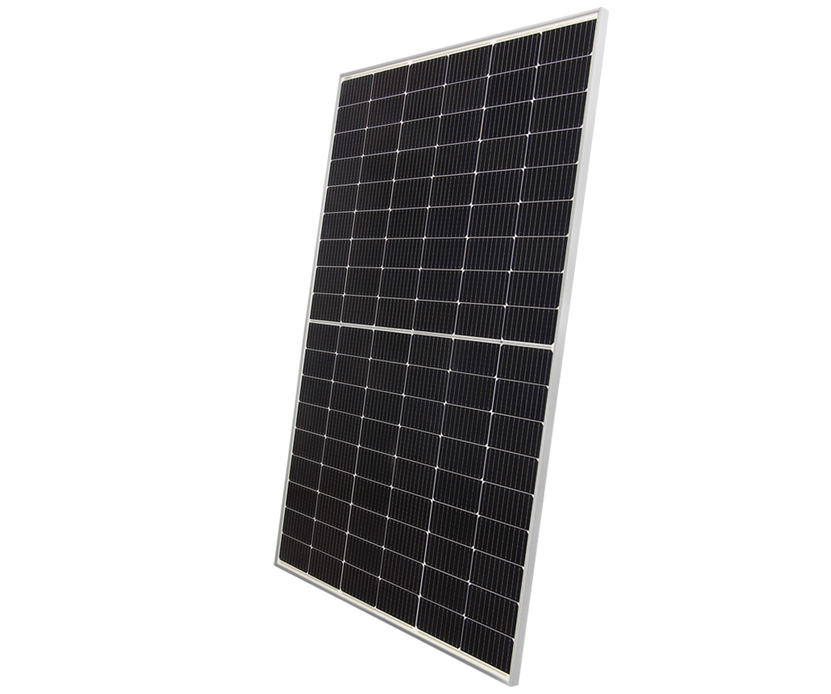

Solarmodul Bifazial 550 Watt schwarz/silber
Art.-ID 16493
- Bifazial
- Leistung: 550 Watt
- Wirkungsgrad: bis zu 26,63%
- Größe: 2278 x 1134 x 35 mm
- Gewicht: 31,5 kg
- 30 Jahre Leistungsgarantie + 20 Jahre Materialgarantie
Passende Produkte
Comprehensive Certificates
- ISO9001:2015
- ISO14001:2015
- ISO45001:2018
- IEC61215/IEC61730
Technische Daten
Merkmale
Gallium-doped Technology
Half Cut Cell Technology
Less Hot Spot Shading Effects
Anti-PID
Low LID
Performance
Enduring High
Reliability & Performance
Bifacial Cell Module Technologies
Linear performance Warranty
Data-Sheet
| Module | PM-550W(144) | ||||
|---|---|---|---|---|---|
| Tolerance (W) | 0 ∼ +5 | ||||
| Standard Test | STC | ||||
| Maximum Power (Pmax ⁄ W) | 550 | ||||
| Open Circuit Voltage Voc(V) | 49.90 | ||||
| Short Circuit Current Isc(A) | 14.07 | ||||
| Maximum Power Voltage Vmp(V) | 41.95 | ||||
| Maximum Power Current Imp(A) | 13.12 | ||||
| Cells (mm) | MBB-182x91 mm | ||||
| Cells Qty (Pcs) | 144(6x24) | ||||
| Max System Voltage (V) | 1000/1500V | ||||
| Open Circuit Voltage Temp (%/°C) | -0.280 | ||||
| Circuit Cirrent Temp (%/°C) | 0.050 | ||||
| Peak Power Temp (%/°C) | -0.360 | ||||
| Operate Temp (°C) | -40 to 85 | ||||
| Nominal Operating cell temperature NOCT | 45±2°C | ||||
| Max Series Fuse Rating (A) | 25 | ||||
| Frontal Static Load (Pa) | 5400 | ||||
| Back Static Load (Pa) | 2400 | ||||
| Standard Test Conditions [STC]: irradiance 1,000 W/m2; AM 1,5; module temperature 25°C. Measuring uncertainty of power is within +3% Tolerance of Pmpp: 0-+3%. Certified in accordance with IEC61730-1/2. | |||||
| Bifacial Output-Rearside Power Gain | |||||
| 5% Maximum Power (Pmax) | 577 Wp | Module Efficiency STC (%) | 22.36 | ||
| 15 % Maximum Power (Pmax) | 633 Wp | Module Efficiency STC (%) | 24.50 | ||
| 25% Maximum Power (Pmax) | 687 Wp | Module Efficiency STC (%) | 26.63 | ||
| Raw material | |||||
| Frame | Alloy Aluminium | Glass (mm) | 2.0 mm (Front: coated semi-tempered glass; Back: semi-tempereded glass) | ||
| Cell | 144 (6x24pcs) | Junction box | IP68 | ||
| Diode Qty | 3 | Connector | 4 mm², MC4 or EVO2 | ||
| Cable (mm) | 300 (+) / 400 (-) Length can be customized | Fire Rating | Class A, according to UL 790 | ||
| Package | |||||
| Module size(mm) | 2278x1134x35 | Weight (kg) | 31.5 | ||
| Loading | 620 PCS/40HQ | Package | 31PCS/PLT | ||
Data-Sheet
